Feelworld SEETEC ATEM156-CO 15.6" Quad 4K HDMI Multiview Portable Monitor in Case

15.6” LCD, Full HD 1920x1080
The SEETEC ATEM156-CO equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.

Professional Monitoring Functions
SEETEC ATEM156-CO has set up professional monitoring functions according to the actual needs of pre-shooting and post-production to help you improve the shooting efficiency. Equipped with four 4K HDMI inputs, it supports quad view, dual view, and single view monitoring functions, allowing you to get perfect multi-camera monitoring in any location! It contains focus-checking functions, such as Peaking Focus, False Color, and Pixel to Pixel, to assist in getting sharp images. It contains framing functions, such as Center Marker, Safety Marker, Grid Marker, to prevent the cut of the screen during the live, to leave the correct space for other functions during the live. It also includes other useful functions like Image Zoom, Check Field, Image Freeze, Color Temperature Adjustment, etc.

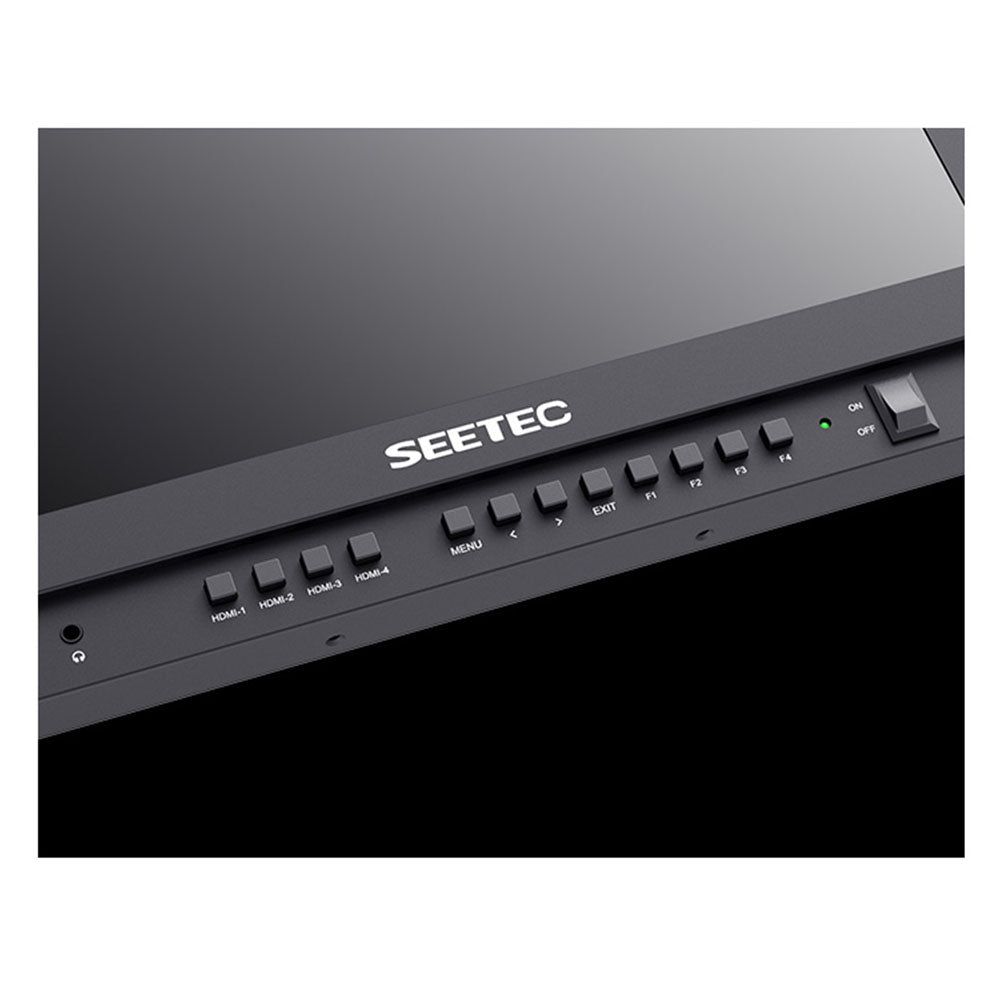

Easy Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM156-CO can meet your needs. It is equipped with a simple control panel, , allowing you to be comfortable in the shooting process. With 4 separated HDMI buttons, you can switch the HDMI signal source quickly; with 4 shortcut keys (F1 ~ F4), you can customize the shortcut key functions and quickly call them out.

True Color . Professional Color Calibration
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

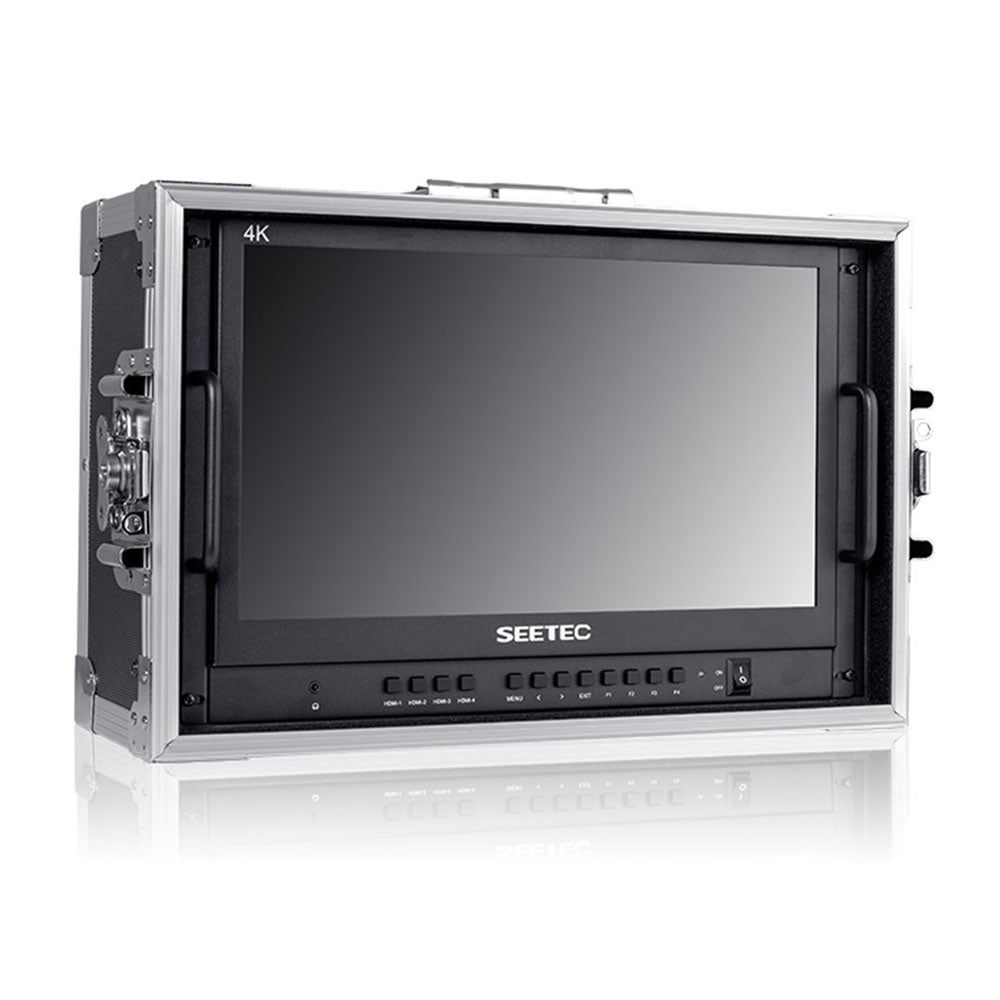

Carry-on Aluminium Case
Suitable for the strict location shooting
.Carry-on Aluminium Case (hand-held for easy carry);
.Easy for dissemble (front and rear cover disassemble easy for screen image monitoring and signal connection).
..Front and rear covers for quick assemble and disassemble, speed the frequent switch between scenes, save the time of preparation the photographic equipments, so that get into work fastly!

Unique Design for High Efficiency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production.The ATEM156-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through. This innovative design portable aviation aluminum case making it well suited for field production and handling to change the environments with speed.

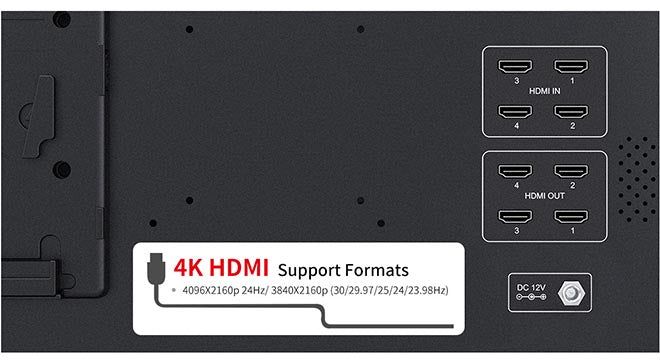

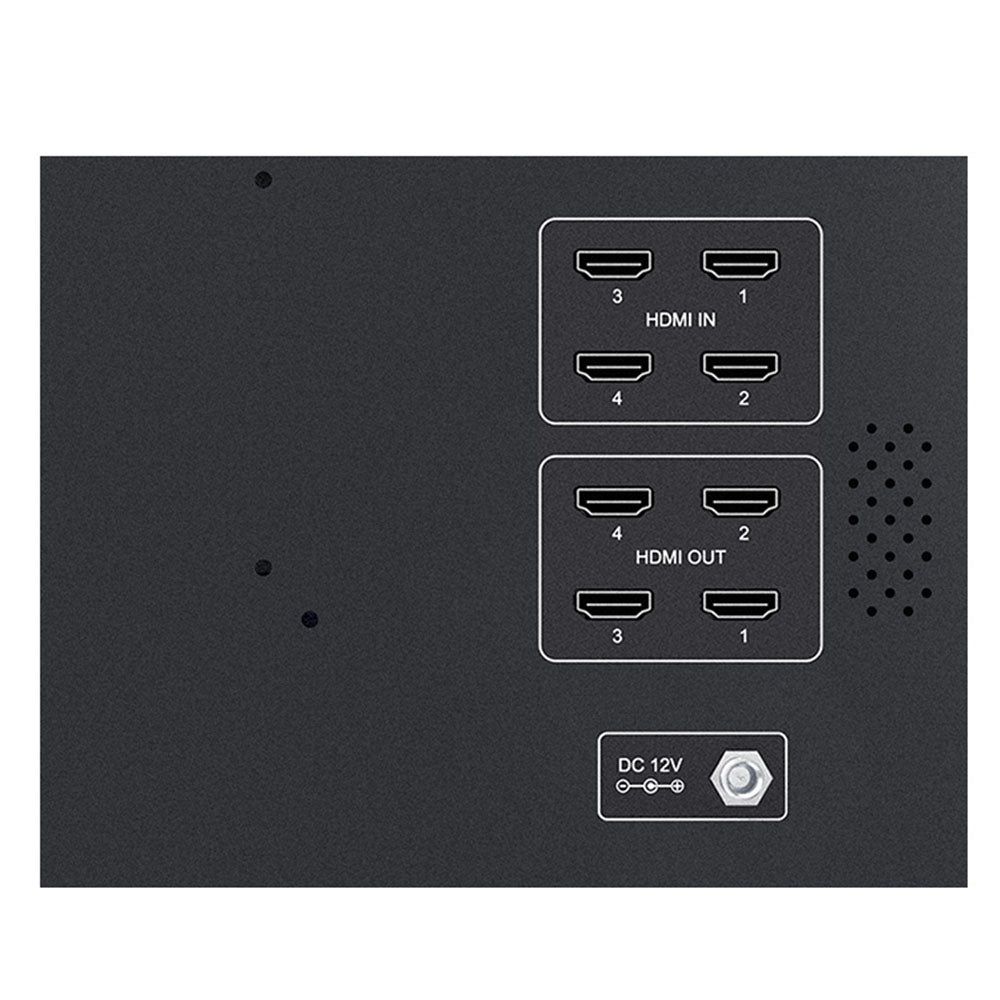

4 X 4K HDMI Inputs and Outputs
Connect up to 4 cameras, game consoles or computers!
ATEM156-CO has 4 X 4K HDMI input and output, which can connect up to 4 cameras, game consoles, computers and other equipment. At the same time, it can also loop out 4 HDMI signals to other devices, such as ATEM Mini or ATEM Mini Pro. This is very useful for studio and live multi-camera shooting.

Realize ATEM Mini Multiview Monitoring
When your switcher does not have a multiview function, such as ATEM Mini, then you may need an ATEM156-CO. When doing larger live productions with multiple cameras, you can first connect the camera to the ATEM156-CO monitor, check the shooting images of each camera on the ATEM156 monitor, and then put them to air, so you don't have to worry about the broadcast content. Help you preview the image and avoid the "blind cut" channel status.

Ideal Monitor for Live Broadcasting
The multiview feature and the portable aluminium case of ATEM156-CO makes the multi-camera live broadcasting easier and more convenient.

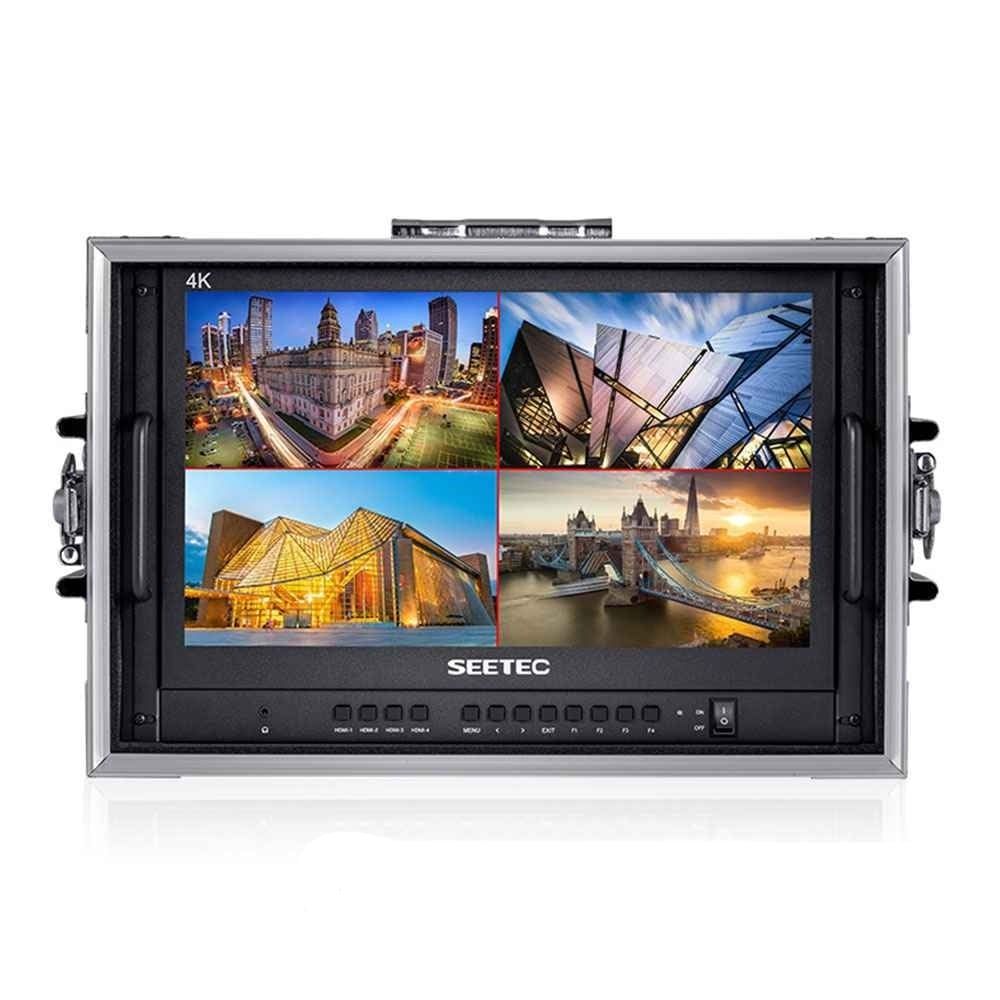

Multiview
Quad View/ Dual View
When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. ATEM156-CO has four 4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi-camera monitoring in any location!

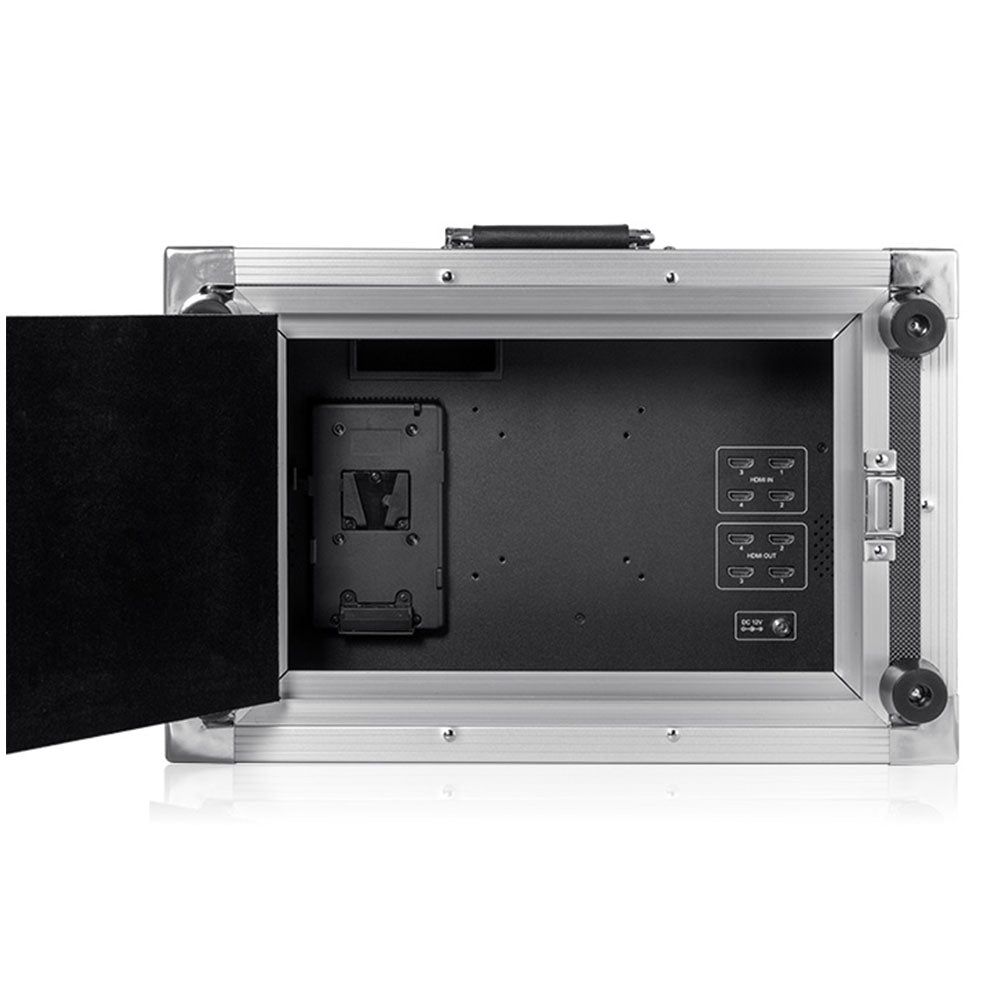

Flexible Power Supply
The back of ATEM156-CO is equipped with a 12V DC power input and a V-mount battery plate. You can connect its 12V DC input for continuous power, or you can install a V-mount rechargeable battery on the V-mount battery plate to realize mobile applications. For outdoor shooting, you can use an external battery, and you can connect a standard DC power supply when using it in a shed or post-production room.

Live Production Broadcast Monitor
ATEM156-CO is an affordable way to create incredible programs immediately from live events! The portable aluminum case can meet the needs of fast-moving monitoring no matter indoors or outdoors. Widely applied in studio, filmmaking, live events etc.

Standard Package Includes:
1× Mini/ Micro HDMI to HDMI Cable
1× V-mount Battery Plate
1× 3A Power Adapter
1× Suitcase
1× Operation Manual

Features:
